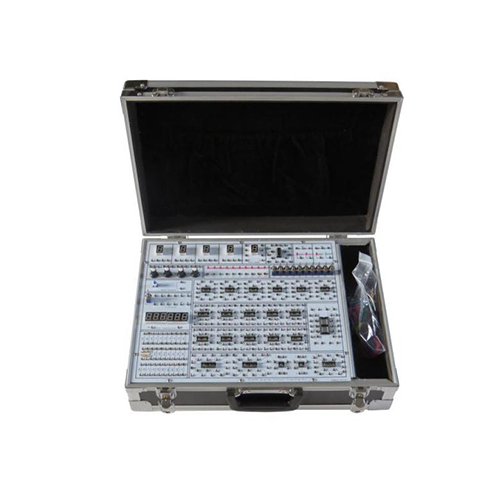

Digital Electronics Experiment Box Teaching Equipment Educational Microprocessor Training Equipment

Item No.: AFE5010
Digital Electronics Experiment Box Teaching Equipment Educational Microprocessor Training Equipment
Description
AFE5010 Digital Electronics Experiment Box Teaching Equipment Educational Microprocessor Training Equipment
Product introduction:
Digital electric circuit learning machine provide various signal source, front side print character wiring, reverse side install the component, all the signal source frequency meter are constituted by CPLD chip and double-side board, all the component adapt high quality product, improve the whole machine quality. Because the component are installed on the reserve side, so it can reduce and avoid the possibility of man-made damage.
Product characteristic: easy to operation, durable, experiment project flexible, it easy to carry out various the digital simulation experiment. This product is suitable for the electronic technique teaching of institutions of higher learning and various vocational-technical school.

System content
1. Power supply: AC input: 220V±10% , 50HZ
DC output: ±12V/200mA, 5V/2A
Manual monopulse electric circuit two group: it can output the positive and negative pulsed in the meantime, pulse amplitudes is TTL electrical level.
Continuous pulses one group: output is TTL electrical level.
Fixed frequency impulse source: 1HZ,1KHZ,10KHZ,100KHZ,1MHZ
4. Six- bit high accuracy digital frequency meter, measuring range: 0-9.9999MHZ error<1HZ ( design by CPLD chip )
5. The output and display of logic level.
A Eight- bit independent logic level switch: it can output “0”,“1” electrical level ( it is positive logic.
B The logic electrical level constituted by eight- bit red LED and drive electric circuit
6. Nixie tube display
A Four-bit BCD code decode display electric circuit constituted by LED nixie tube.
B One-bit eight segment nixie tube, pin totally lead out, it used for nixie tube experiment.
CCD timing generator and start and stop control electric circuit
21 eight core, fourteen core, sixteen core, twenty core, twenty-eight core and other circular hole socket. It can meet various IC chip.

9. Four each resistance value potentiometer
 10. 30 Regular size resistance-capacitance
 Recommended experiment project
The parameter testing and using of TTL integrated logic gate
The testing of CMOS integrated logic gate
3. The logic function experiment of gate electric circuit
4. Common combinations logic function component testing
5. Half adder, full adder and logical operation experiment
6. Seven people voting circuit and blood type detection electric circuit
7. Trigger function testing
