Full-Fledged Basic Electro-Pneumatic Trainer Set With Complete Accessories Didactic Equipment Technical Skills Equipment Pneumatic Didactic Equipment

AFM085 Full-Fledged Basic Electro-Pneumatic Trainer Set With Complete Accessories Didactic Equipment Technical Skills Equipment Pneumatic Didactic Equipment
1. Product Introduction
1.1 Product Description
In addition to conventional basic pneumatic control circuit experiments, this system can also simulate pneumatic control technology application experiments and pneumatic technology course design, making it a typical mechatronics experimental device.
Through practical experiments and course design, students can accurately grasp the structure of pneumatic components, the control principles and design methods of pneumatic circuits, and other control principles.
1.2 Product Features
(1) Meet the practical application needs of the base and teaching and training system
(2) The equipment has a solid structure and good stability
(3) Low operating noise
(4) Clear layout and attractive design


2. Product Introduction

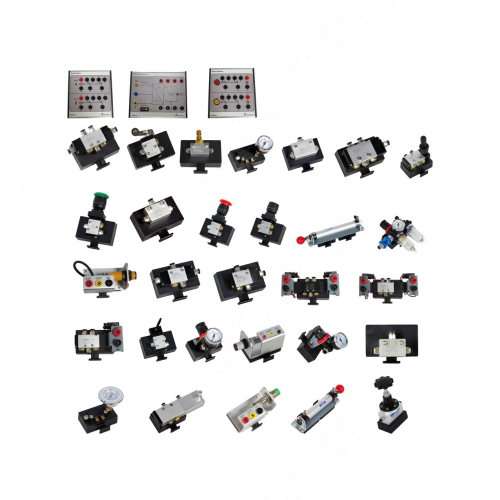

2.1 Product Components
No.    Name    Quantity
1    Double-acting cylinder    3
2    Mushroom-head pushbutton valve    1
3    Five-way, two-position handle-operated directional control valve    2
4    Single air-operated, two-position, three-way valve    1
5    Single air-operated, two-position, five-way valve    1
6    Dual air-operated, two-position, five-way valve    1
7    Dual air-operated, two-position, three-way valve    1
8    Double unit    1
9    Pressure gauge    2
10    Single-acting cylinder    2
11    Push-button valve    2
12    Pressure reducing valve    1
13    3/2 short-handle manual valve    2
14    2-position, 3-way, bidirectional rolling cam mechanical valve    2
15    Flat-head, 2-position, 3-way push-button valve    1
16    2-position, 3-way pneumatic time-delay valve    4
17    Sequence valve    1
18    Shuttle valve or gate-type shuttle valve    1
19    Dual-pressure valve    1
20    Quick exhaust valve    1
21    5-way, 3-position solenoid directional valve (center leakage)    1
22    5-way, 3-position solenoid directional valve (center seal)    1
23    5-way, 3-position solenoid directional valve (center pressure)    1
24    5-way, 2-position double solenoid directional valve    1
25    Two-position, five-way, single-sole solenoid valve    1
26    Two-position, three-way, single-sole solenoid valve    1
27    Two-position, three-way, single-sole solenoid valve    1
2.2 Product module Part
No.    Name    Quantity
1    DC 24V power module    1
2    Button module    2
3    Relay module    2
2.3 Product accessories
No.    Name    Quantity
1    Windows 10 Pro mini PC    1
2    Pneumatic four-way connector    4
3    One-way throttle valve    2
4    Adjustable distributor    1
5    Quick connector    2
6    Securing strap    1
7    Air hose    1
8    Air gun tip    1
9    Tissue tape    5
10    Extended Allen wrench (9 pieces)    1
11    Air hose scissors    1
12    T-type tee    6
13    Pneumatic reducer straight connector    2
14    Quick exhaust valve    1
3. Product teaching experiment list
(1) Single-acting cylinder reversing circuit
(2) Double-acting cylinder reversing circuit
(3) Single-acting cylinder speed control circuit
(4) Double-acting cylinder one-way speed regulation circuit
(5) Double-acting cylinder two-way speed regulation circuit
(6) Buffer circuit
(7) Dual pressure control circuit
(8) High-low voltage conversion circuit
(9) Delay circuit
(10) Multi-cylinder sequential action circuit
(11) Single-cylinder single reciprocating control circuit
(12) Dual-cylinder synchronous action circuit
(13) OR gate shuttle valve application circuit
(14) Dual pressure valve and gate application circuit
(15) Quick exhaust valve application circuit
(16) Magnetic induction proximity switch application
(17) Relay control circuit
(18) Single-cylinder continuous reciprocating action circuit
(19) Use of dual air-controlled reversing valve
(20) Use of sequence valve
(21) Speed switching circuit experiment
