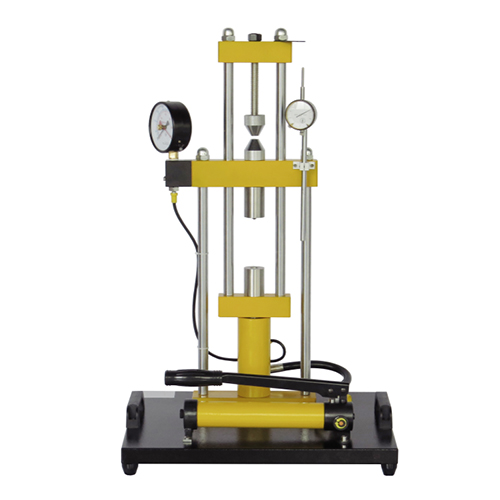

Tensile Testing Machine Teaching Equipment Didactic Equipment Vocational Education Equipment Mechanical Training Equipment

1. Equipment introduction
1.1 Overview
This experiment mainly allows students to apply the principles and formulas of Brinell hardness to real objects, exercise their hands-on ability, and gain a more comprehensive understanding of the theoretical knowledge they have learned.
1.2 Features
There are many test samples and a variety of different experiments can be carried out
16 tensile specimens
Materials: 4x aluminum, 4x copper, 4x stainless steel, 4x copper zinc
16 hardness samples
Length x width x height: 30x30x10mm
Material: 4xAl, 4xCu, 4xSt, 4xCuZn
Sphere for hardness testing: 10mm
2. Technical parameters
Weight:550mm*450mm*820mm
Size: <45kg


3. Components list and detailed introduction
3.1 Main part
No.    Name
1    Pulling device
2    Pressure gauge
3    Pressure device
4    Lever
5    Unloading knob
6    Dial indicator
7    Oil cylinder
3.2 Accessories
No.    Name    Qty
1    Inner hexagon    1 Set
2    Brass tension rod, brass square pressure block    4 each
3    Copper tension rod, copper square pressure block    4 each
4    Stainless steel tension rod, stainless steel square pressure block    4 each
5    Aluminum tension rod, aluminum tension square pressure block    4 each
6    Flat pressure device    1
When you run out of supplies, you need to purchase them yourself
Optional compressed specimens: plaster, wood, plastic
4. Experiment list
Experiment 1 Tensile experiment
Experiment 2 Brinell hardness test
Experiment 3 compression experiment
Experiment 4 Instructions for use of pressure gauge
