1. Product Introduction
1.1 Product Description
The absorption refrigeration training platform is designed to systematically introduce students to the operation mode of refrigeration, master its control principle and the operation mode of the compressor, and conduct a systematic demonstration so that students can clearly understand its principles during the teaching process and master the refrigeration principle and pipe connection principle.
1.2 Product Features

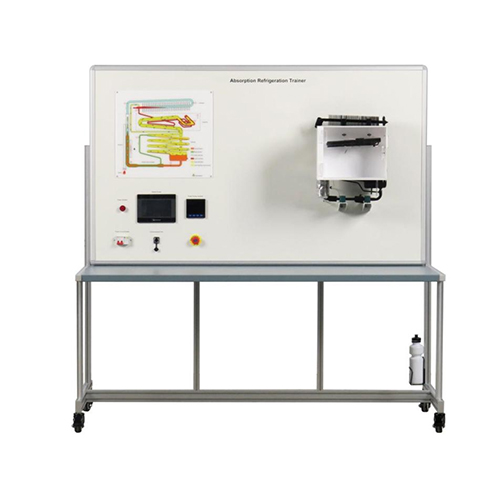

(1) The absorption refrigeration training platform adopts an aluminum chassis frame structure. The tabletop reduces the overall weight of the equipment while ensuring the overall strength of the equipment. There are 4 universal wheels installed at the bottom for easy movement.
(2) The equipment has a good safety protection system. The electrical circuit is equipped with a leakage protection switch, an emergency stop button and reliable grounding protection measures to ensure the safety of the equipment and personnel.
(3) The absorption refrigeration training platform has good portability, which is convenient for training in different venues and environments.
(4) The absorption refrigeration training platform can provide systematic training courses, covering the basic knowledge, operation methods, maintenance and other aspects of safety facilities.
2. Technical specifications
2.1 Basic technical parameters
Working power supply    Single-phase three-wire AC 220V/50Hz
Ambient temperature    10℃～30℃
Ambient humidity    ＜75%（25℃）
2.2 Equipment appearance parameters
Dimensions    1800mm*800mm*1800mm
Weight    200kg


3. Product introduction
3.1 Product main part
No.    Name    Qty
1    Equipment operation schematic    1
2    Power indicator light    1
3    HMI    1
4    Single-phase multi-function meter    1
5    Circuit breaker    1
6    Network communication port    1
7    Emergency stop button    1
8    Refrigeration end    1
9    Silicone hose    1
10    Condensate water collection bottle    1
11    Heating tube    1
No.    Name    Qty
1    Liquid storage tank    1
2    Absorber    1
3    Condenser radiator    1
3.2 Product accessories
No.    Name    Qty
1    Network cable    1
2    Cleaning cloth    1
3    USB     1
3.3 HMI introduction
No.    Name    Qty
1    Home page button    1
2    Page button    1
3    Heating rod operation indicator light    1
4    Digital display block    8
5    Start button    1
6    Stop button    1
7    Operation indicator light    1
8    Energy meter block    3
4. Product teaching experiment list
(1) Refrigeration experiment
