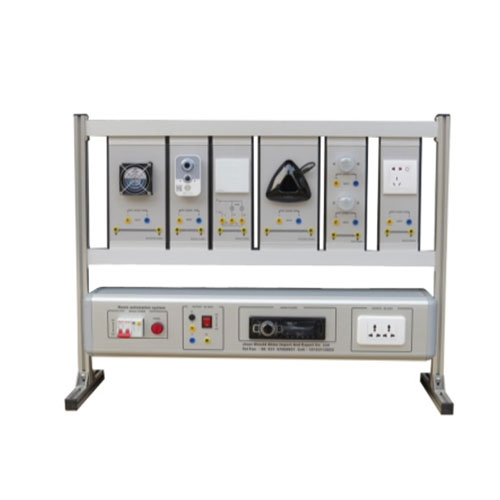

Home Automation System Trainer Didactic Equipment Teaching Building Automation Trainer

Item No.: AFB003
Home Automation System Trainer Didactic Equipment Teaching Building Automation Trainer
Description
AFB003 Home Automation System Trainer Didactic Equipment Teaching Building Automation Trainer
1 Product profile
1.1 Overview
This training device includes a variety of types of intelligent elements, through the relevant experiment, can be familiar with the characteristics of the smart home, to master its control principle and control mode, the corresponding knowledge and skills, suits, higher vocational colleges, secondary vocational schools and vocational school related professional teaching and skills training examination.
1.2 Feature
(1) the training platform uses aluminum profile frame structure, which is easy to use and not easy to damage.
(2) the intelligent components are fully equipped and can be used in combination to complete various training contents.
(3) the training platform has a good security system.

2 Technical parameter
(1) input power: two phases three wires 220V±10% 50Hz
(2) external dimensions: 950mm x 300mm x 730mm
(3) complete machine capacity: < 1.5 KVA
(4) weight: < 50kg
(5) working conditions: temperature - 10 ℃ ~ + 40 ℃ relative humidity < 85% (25 ℃)

3 Product compostion
3.1   Power control panel
The power control screen is made of aluminum alloy section panel, closed box structure, which is connected to the lower shelf.
3.2   Power control panel configuration
 (1) Two phase three line power supply, controlled by leakage circuit breaker.
(2) It equipped with power indicator, power output socket and secure type power supply terminal.
(3) Built-in ac power supply and short circuit protection function.
