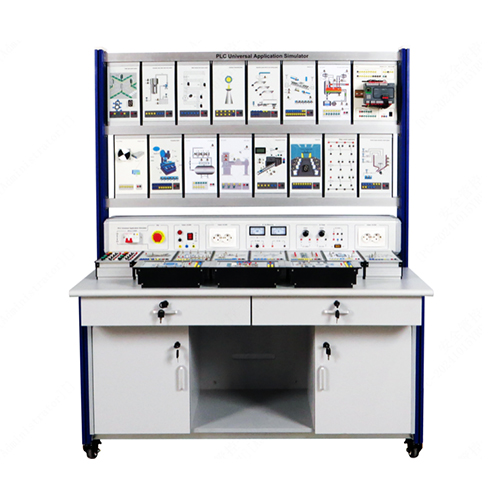

PLC Universal Application Simulator Didactic Equipment Teaching Electrical Automatic Trainer

AFE1003 PLC Universal Application Simulator Didactic Equipment Teaching Electrical Automatic Trainer

I.Product Overview
1.1 Overview
This training device includes Schneider PLC, training simulation module and other control objects. Through relevant experiments, students can become familiar with the basic use of Schneider PLC, programming methods, use of programming software, etc., and cultivate corresponding knowledge and skills.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure. The measuring instrument and training power supply are installed in an integrated manner. The training circuit and components are combined in a hanging box. The unit combination is flexible, easy to use, and not easy to damage.
(2) The experimental circuit and equipment are complete and can be used in combination to complete the training content of various courses.
(3) The training platform has a good safety protection system.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: three-phase five-wire 380V ±10% 50Hz
2.2 Dimensions and Weight
Dimensions: 1405mm×700mm×1740mm
Weight: ＜100kg


III.Components List and Detailed Introduction
3.1 Product Main Part
Number    Name    Quantity
1    Module    27
2    Power box    1
3    Desktop    1
4    Cabinet    4
5    Frame    1
6    Universal wheel    4
3.2 Product Electrical Parts
Number    Name    Quantity
1    2P circuit breaker with leakage protection    1
2    Emergency stop button    1
3    AC 220V output    1
4    European socket    2
5    DC current/voltage meter    1
6    DC power module    1
7    European socket    2
3.3 Product module parts
Number    Name    Quantity
1    Stepper motor module    1
2    Machining center module    1
3    Air compressor module    1
4    CCZK lathe control module    1
5    Multiple liquid automatic control system module    1
6    Relay module    1
7    Quick answer module    1
8    Temperature control module    1
9    Traffic light module    1
10    Water tower water level control module    1
11    Motor forward and reverse control module    1
12    Sky Tower Light module    1
13    Automatic delivery loading system    1
14    Material car motor    1
15    Inert gas control system    1
16    Schneider PLC module    1
17    Button module    1
18    Automatic packaging production line module    1
19    Electroplating control system module    1
20    Robot module    1
21    Automatic punching machine control system module    1
22    Automatic washing machine control system    1
23    Automatic punching machine control system module    1
24    Mail automatic sorting system module    1
25    Vending machine module    1
26    Fresh water filtration control module    1
27    Elevator system control module    1
3.4 Product accessories parts
Number    Name    Quantity
1    2mm electrical safety connection cable 100CM red    10 pieces
2    2mm electrical safety connection cable 100CM blue    10 pieces
3    2mm electrical safety connection cable 100CM black    10 pieces
4    2mm electrical safety connection cable 100CM yellow    15 pieces
5    2mm electrical safety connection cable 100CM green    15 pieces
6    4mm electrical safety connection cable 1m double-ended yellow    1 pieces
7    4mm electrical safety connection cable 1m double-ended double-colored    1 piece
8    4mm electrical safety connection cable 1m double-ended blue    1 piece
9    Network cable 2m Cat5E (Category 5E network cable)    1 piece
10    Fuse 30mA 5*20    5 pieces
11    Fuse 5A 5*20    5 pieces
IV. Product Configuration List
No.    Name    QYT
1    Stepper motor module    1 Piece
2    Machining center module    1 Piece
3    Air compressor module    1 Piece
4    CCZK lathe control module    1 Piece
5    Multiple liquid automatic control system module    1 Piece
6    Relay module    1 Piece
7    Quick answer module    1 Piece
8    Temperature control module    1 Piece
9    Traffic light module    1 Piece
10    Water tower water level control module    1 Piece
11    Motor forward and reverse control module    1 Piece
12    Sky Tower Light module    1 Piece
13    Automatic delivery and loading system    1 Piece
14    Material car motor    1 Piece
15    Inert gas control system    1 Piece
16    Schneider PLC module    1 Piece
17    Button module    1 Piece
18    Automatic packaging production line module    1 Piece
19    Electroplating control system module    1 Piece
20    Robot module    1 Piece
21    Automatic punching machine control system module    1 Piece
22    Automatic washing machine control system    1 Piece
23    Automatic punching machine control system module    1 Piece
24    Mail automatic sorting system module    1 Piece
25    Vending machine module    1 Piece
26    Fresh water filtration control module    1 Piece
27    Elevator system control module    1 Piece
28    2mm electrical safety connection cable 100CM red    10 Pieces
29    2mm electrical safety connection cable 100CM blue    10 Pieces
30    2mm electrical safety connection cable 100CM black    10 Pieces
31    2mm electrical safety connection cable 100CM yellow    15 Pieces
32    2mm electrical safety connection cable 100CM green    15 Pieces
33    4mm electrical safety connection cable 1m double-ended yellow    1 Piece
34    4mm electrical safety connection cable 1m double-ended two-color    1 Piece
35    4mm electrical safety connection cable 1m double-ended blue    1 Piece
36    Network cable 2m Cat5E (Category 5E network cable) Yellow    1 Piece
37    Fuse 30mA 5*20    5 Pieces
38    Fuse 5A 5*20    5 Pieces
V. Experiment List
Experiment 1 Stepper motor control experiment
Experiment 2 Traffic light operation experiment
Experiment 3 Tower Light operation experiment
Experiment 4 CCKZ lathe control experiment
Experiment 5 Temperature control operation experiment
Experiment 6 Air compression module operation experiment
Experiment 7 Motor forward and reverse control experiment
Experiment 8 Water tower water level control experiment
