1. Product Introduction
1.1 Product Description

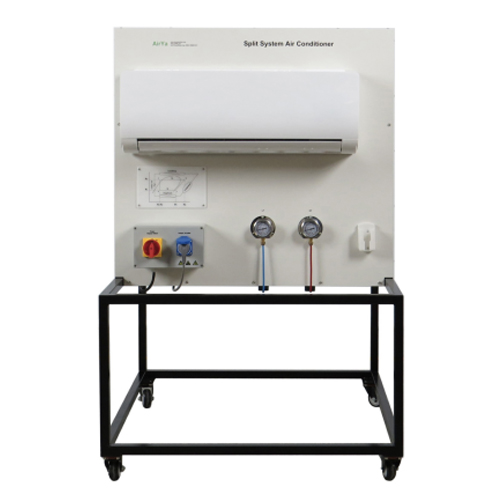

The split-type air conditioner is a comprehensive experimental device designed specifically for teaching, training, and principle demonstration. This system fully reproduces the actual structure of a modern split-type air conditioner, including the indoor unit, outdoor unit, refrigeration piping system, electrical control system, and supporting testing instruments. Through this equipment, students can intuitively learn the principles of air conditioning refrigeration cycles and electrical control logic, and personally perform core skills operations such as vacuuming, refrigerant charging, parameter measurement, and fault diagnosis. The equipment integrates multiple precision measuring instruments, supporting simultaneous measurement and analysis of multiple parameters such as wind speed, temperature, and humidity, making it an ideal teaching and training workbench for HVAC and related majors.
1.2 Product Features
Realistic System Integration: Utilizes real, operable air conditioning components to construct a complete refrigeration cycle and control system, providing strong intuitive teaching.
Data Visualization: Equipped with high and low pressure gauges, digital thermometers, anemometers, hygrometers, and other measuring instruments, it displays key system operating parameters in real time.
Safety-Oriented Teaching Design: The structure is rationally laid out, with key measuring points externally located, maximizing operational and observation access while ensuring safety.
Comprehensive Skills Training: Supports full-process skills training from basic understanding and operational monitoring to maintenance and troubleshooting.
2. Technical Specifications
2.1 Basic Technical Parameters
Operating power supply    Single-phase three-wire AC 220V / 50Hz
Rated power consumption    Approximately 1.2~2.5kW
Cooling capacity    Approximately 3.0~5.0kW
Air circulation volume    400~450m³/h
Dehumidification capacity    0.5~1.0L/h
Refrigerant type    R32
Refrigerant charge    650~750g
2.2 Equipment External Parameters
Dimension    1000mmX1000mmX1540mm
Weight    ≤150kg


3. Product Introduction
3.1 Main Body of the Product
Number    Name    Quantity
1    Air conditioner indoor unit    1
2    Power supply box    1
3    Low-pressure gauge    1
4    High-pressure gauge    1
5    Air conditioner remote control    1
3.2 Product Accessories
Number    Name    Quantity
1    Battery    1
2    Split-type anemometer (AS836)    1
3    Handheld sensor (AS836 probe)    1
4    Battery    1
5    Mini thermometer and hygrometer (AS817)    1
6    Digital thermometer (VICTOR 6801)    1
7    K-type thermocouple probe    1
8    Air conditioner remote control    1
4. Product Teaching Experiment List
(1) Use of Multiple Measuring Instruments
